Mix-Proof Valve Arrays

Advanced valve matrix systems that enable complex product routing while preventing cross-contamination through dual-seat technology.

Product Overview

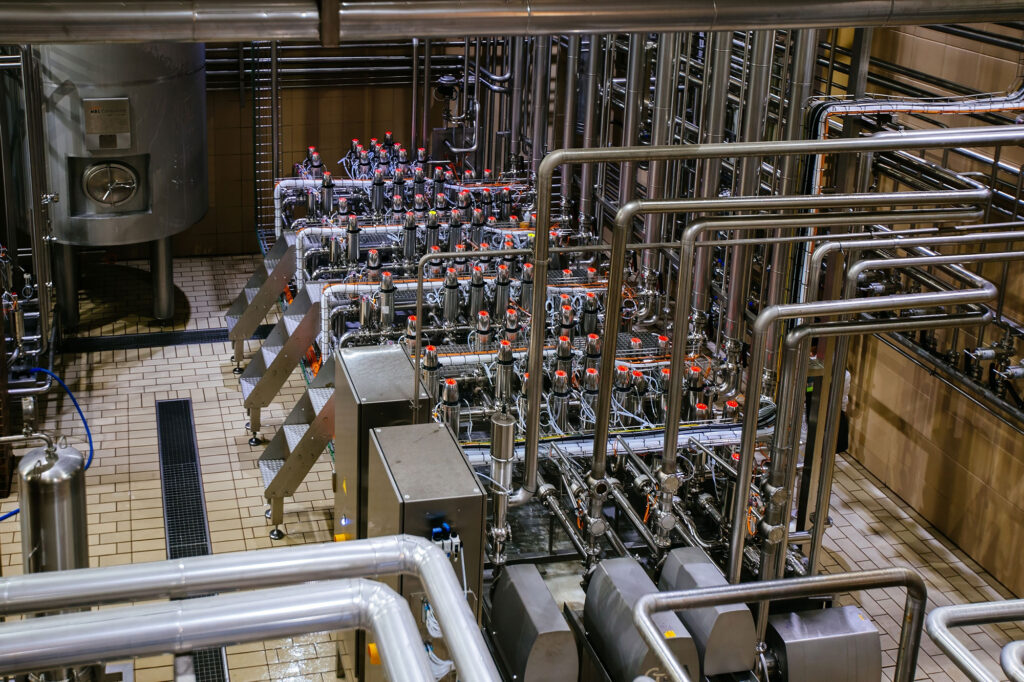

Mix-proof valve arrays provide sophisticated routing capabilities for facilities handling multiple products through shared piping networks. These systems utilize double-seat valve technology with intermediate chambers to absolutely prevent product intermixing, even during valve failures. With automated positioning, CIP capability, and position verification, our valve arrays ensure product integrity while maximizing production flexibility.

Key Benefits

  • Absolute product separation prevents costly contamination events
  • Automated valve sequencing eliminates operator errors
  • Position sensors verify valve status before product transfer
  • CIP-compatible design ensures complete sanitation
  • Stainless steel construction provides corrosion resistance
  • Pneumatic actuation ensures reliable, fast operation
  • Modular manifold design simplifies installation and expansion
  • Reduces facility footprint compared to dedicated piping
  • Integration with plant control systems enables automated production

Industries Served

  • Dairy Processing
  • Beverage Production
  • Brewing Operations
  • Pharmaceutical Manufacturing
  • Personal Care Products
  • Food Processing
  • Biotechnology

Compliance Capabilities

  • 3-A Sanitary Standards
  • FDA 21 CFR Part 110
  • EHEDG certification
  • ASME BPE
  • cGMP requirements
  • USDA approval
  • EU Regulation 1935/2004

Product Breakdown

  • Double-Seat Mix-Proof Valves: Individual valves with two independent sealing elements separated by an intermediate chamber with leak detection, available in 1"-6" sizes for pressures up to 150 PSI and temperatures to 280°F
  • Valve Clusters: Pre-assembled manifold blocks with 3-10 mix-proof valves sharing common intermediate chambers, reducing installation time by 60% and providing compact routing solutions for multi-product facilities
  • Matrix Distribution Systems: Large-scale valve arrays (20-100+ valves) enabling routing from multiple sources to multiple destinations with PLC-controlled sequencing and interlock logic preventing invalid routing combinations
  • Seat Lift Detection Valves: Advanced mix-proof valves with position sensors monitoring both seat movements and providing feedback for validation that both seats are properly closed before pressurization
  • CIP Return Valve Blocks: Specialized valve arrays managing return flows from multiple cleaning circuits to CIP systems with automated sequencing preventing cross-contamination of cleaning solutions
  • Aseptic Valve Arrays: Steam-barrier mix-proof valves maintaining sterile boundaries for pharmaceutical and sterile beverage applications with continuous or cyclic steam barrier operation at product/environment interfaces

Technical Details

  • Valve Bodies: 316L stainless steel with tri-clamp or DIN connections, featuring electropolished surfaces (Ra <0.8 μm) and dead-leg-free design meeting 3-A and EHEDG standards for sanitary applications
  • Seat Design: Dual EPDM, FKM, or PTFE seats with independent pneumatic actuators (40-90 PSI air pressure) providing leak-tight sealing with bubble test capabilities and seat lift monitoring for validation
  • Intermediate Chamber: Vented cavity between seats with drain connections allowing visual or automated leak detection through conductivity sensors or pressure monitoring detecting seal failures within seconds
  • Actuators: Pneumatic single-acting or double-acting actuators with spring return for fail-safe positioning, featuring manual override capabilities and ISO 5211 mounting interfaces for standardization
  • Position Feedback: Inductive proximity sensors or mechanical limit switches providing binary position confirmation to PLC with time-delay monitoring ensuring complete valve travel before product flow initiation
  • Control Integration: Pre-wired valve terminal boxes with DeviceNet, Profibus, or Ethernet/IP communication enabling integration with plant automation systems and providing valve status monitoring and diagnostics
